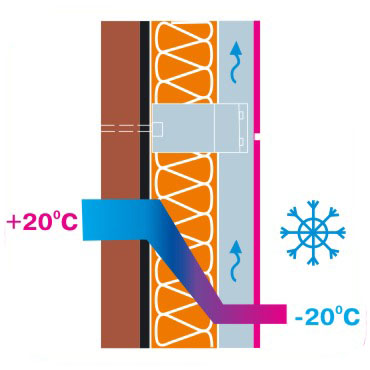

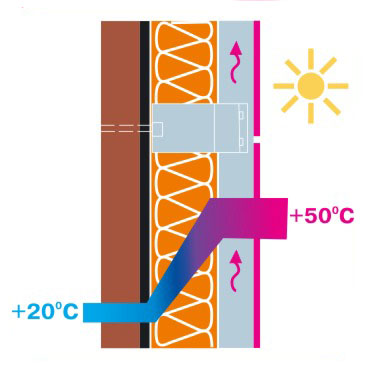

Rear-ventilated cladding system ALUTECH ALT150 is an up-to-date way to increase energy efficiency of a building and reducing its operational costs, increase attractiveness of the building for customers and tenants by creating better conditions for work and leisure. Design features of ventilated facades make it possible to extend maintenance-free service-life of all building components. Due to a broad choice of facing materials applied in ventilated facades the building can be made unique and still easily match the architectural style of any city. There is no real alternative to ventilated facades.

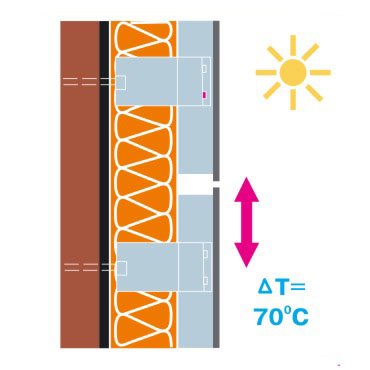

ALUTECH ALT150 system of ventilated facades consists of brackets and a guiding profile connected by an additional component that ensures unlimited compensation of thermal and mechanical deformations and a broad range of adjustments.
ALUTECH ALT150 system is designed for constructing hanged ventilated facades with the use of different facing materials. Strength properties of the system allow its application on buildings up to 150 m high in V-type (fifth) wind regions, which is confirmed by expert opinion and calculations performed by Melnikov Central R&D Institute of Construction Material Structures (Moscow).

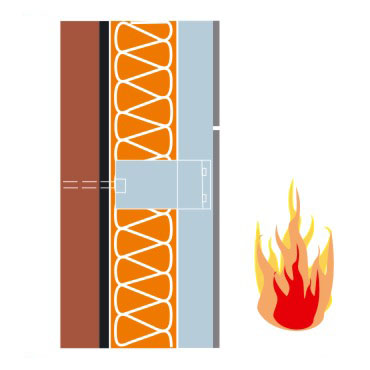

ALT150 system with regard to fire safety properties complies with requirements imposed on outer walls of buildings of various functional purposes, up to I fire-resistance rating and С0 fire hazard class. The system fire hazard class is K0.
The life cycle of ventilated facades on the basis of ALT150 system is at least 30 years in a mildly aggressive and non-aggressive environment, and at least 25 years in a medium aggressive environment. The service life can be increased up to 50 years and above with the help of protective anodic coating.
ALUTECH ALT150 system of hanged ventilated facades is the first system based on a T-shape guiding and L-shape bracket that features high rigidity properties, ensures unlimited compensation of thermal and mechanical deformations and has a range of adjustment possibilities.
