Standard guide rails
Installed if there is no additional requirements to installation and stability of roller shutter.
Aluminium, extruded.
For AR/377, AR/39, AR/40, ARH/40, AR/45, AR/41, AER44/S, AER44m/S profiles.
And caps SF45/137...230u, SF45/137...230u-B, SF45/137...230u-M, SF45/137...230u-BM, SF230/S-M, SF250/Sa-M, SF250/Sa, SF20/137...205, SF-R/137...205u, SF-QR/137...205 end caps.
GR45×22E — without insert
GR45×22IE — with IS11 insert
GR45×22BE — with ISE01 brush insert
GR45×22B17 — with ISE17 brush insert
For AR/377, AR/39, AR/40, ARH/40, AR/45, AR/41, AER44m/S, AER44/S profiles
End caps SF45/137…230u, SF45/137…230u-B, SF45/137…230u-M, SF45/137…230u-BM, SF250/Sa-M, SF250/Sa, SF20/137…205, SF-R/137…205u, SF-QR/137…205.

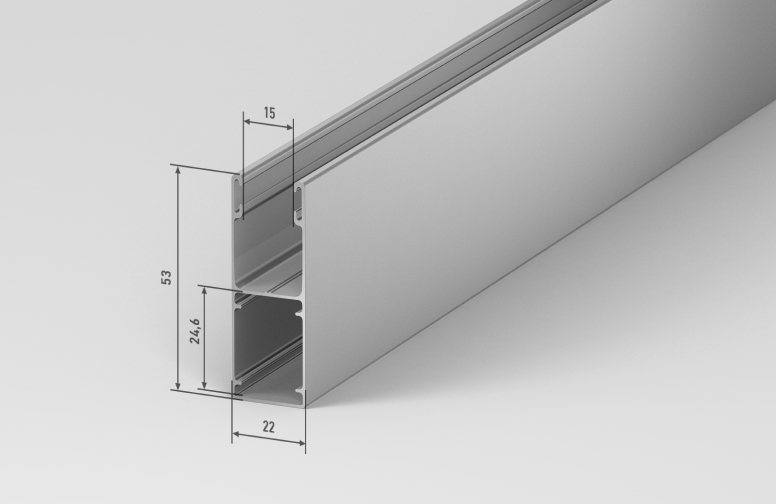

GR53×22E — without insert
GR53×22IE — with IS11 insert
GR53×22BE — with ISE01 brush insert
GR53×22B17 — with ISE17 brush insert
Aluminium, extruded.
AR/377, AR/39, PD/39, AR/40, ARH/40, AR/45, PD/45, AR/41, AER44m/S, AER44/S profiles and SF45/137...230u, SF45/137...230u-B, SF45/137...230u-M, SF45/137...230u-BM, SF250/Sa-M, SF250/Sa, SF20/137...205, SF‑R/137...205, SF-QR/137...205 end caps.
GR53×22/eco — without insert
GR53×22I/eco — with IS11 insert
GR53×22B/eco — with ISE01 brush insert
GR53×22B17/eco — with ISE17 brush insert

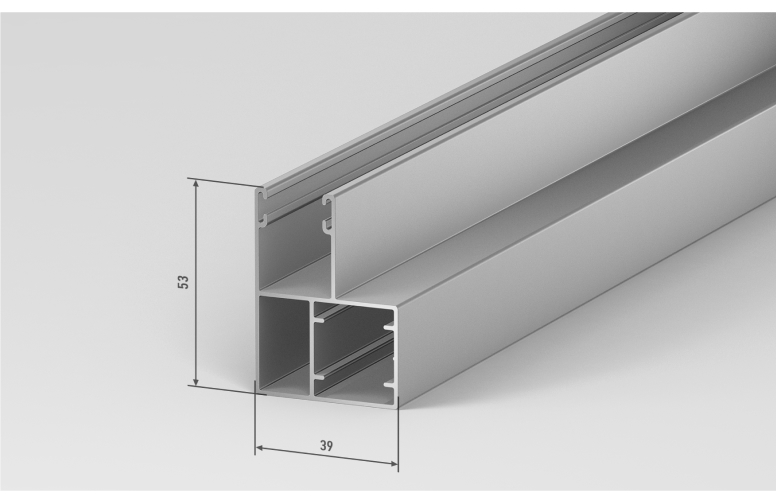

Aluminium, extruded, to install the roller shutter on the insect screen frame.
For AR/377, AR/39, AR/41, AR/45, AR/40, ARH/40, AER44m/S, AER44/S profiles and SF45/137...230u-M, SF45/137...230u-BM, SF250/Sa-M, SF250/Sa, SF45/137...230u, SF45/137...230u-B, SF-R/137...205u, SF-QR/137...205, SF20/137...205 end caps.
GR53×39E — without insert
GR53×39IE — with IS11 insert
GR53×39BE — with ISE01 brush insert
GR53×39B17 — with ISE17 brush insert
Aluminium, extruded.
For AR/55m profile
End caps SF45/137...230u, SF45/137...230u-B, SF45/137...230u-M, SF45/137...230u-BM, SF250/Sa-M, SF250/Sa, SF20/137...205, SF-R/137...205u, SF-QR/137...205.
GR65×24E — without insert
GR65×24BE — with ISE01 brush insert
GR65×24IE — with IS11 insert
Aluminium, extruded, reinforced, with enlarged chamber opening for curtain movement.
For AR/377, AR/39, AR/40, ARH/40, AR/45, AR/41, AER44m/S, AER44/S profiles and SF45/137...230u, SF45/137...230u-B, SF45/137...230u-M, SF45/137...230u-BM, SF250/Sa-M, SF250/Sa, SF20/137...205, SF-R/137...205u, SF-QR/137...205 end caps.
GR68×22E — without insert
GR68×22IE — with IS11 insert
GR68×22BE — with ISE01 brush insert
GR68×22B17 — with ISE17 brush insert
Aluminium, extruded.
For AR/52, AR/55, ARH/55, AER55/S, AER55m/S, AR/555, AEG56, AEG56/P, AER56, AEG30/S profiles
End caps SF45/137…230u, SF45/137…230u-B, SF45/137…230u-M, SF45/137…230u-BM, SF250/Sa-M, SF250/Sa, SF20/137…205, SF-R/137…205u, SF-QR/137…205.

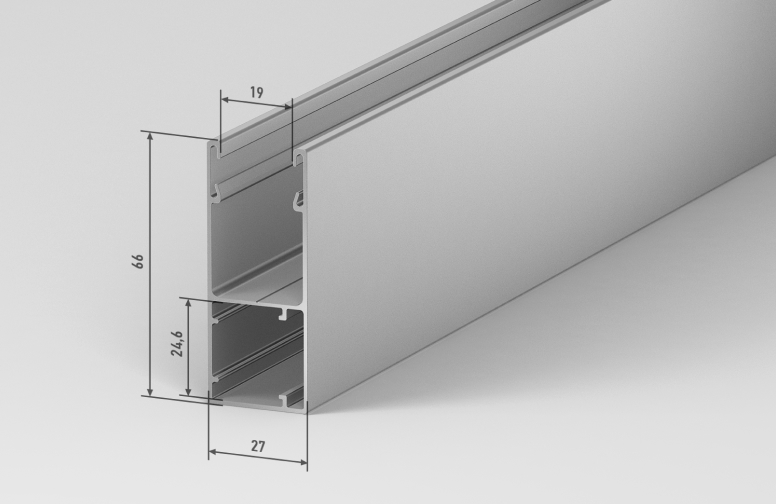

GRM66×27E — without insert
GRM66×27IE — with IS13 insert
GRM66×27BE — with ISE19 brush insert
Aluminium, extruded.
For AR/52, AR/55, ARH/55, AER55/S, AER55m/S, AR/555, AEG56, AEG56/P, AER56, AEG30/S profiles and SF230, SF250a, SF300a, SF360m, SF360/C, SF405/C end caps.
GR75×27E — without insert
GR75×27IE — with IS13 insert
GR75×27BE — with ISE19 brush insert
