ALT W72AW Aluminium-wood windows
Modern, durable windows made from aluminium and natural wood. Wood makes the interior look noble, cozy and elegant, at the same time aluminium ensures durability and weather resistance of the windows.

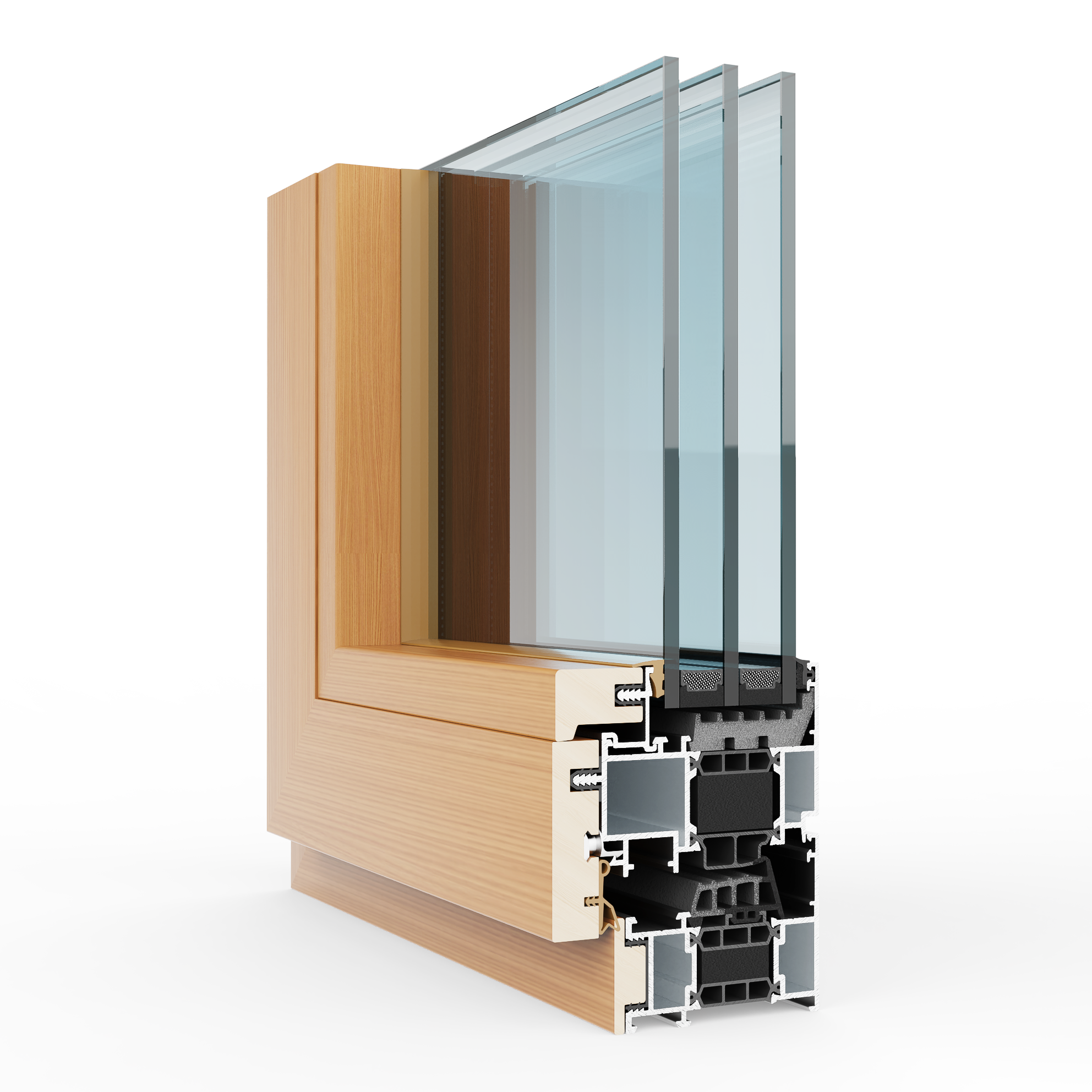

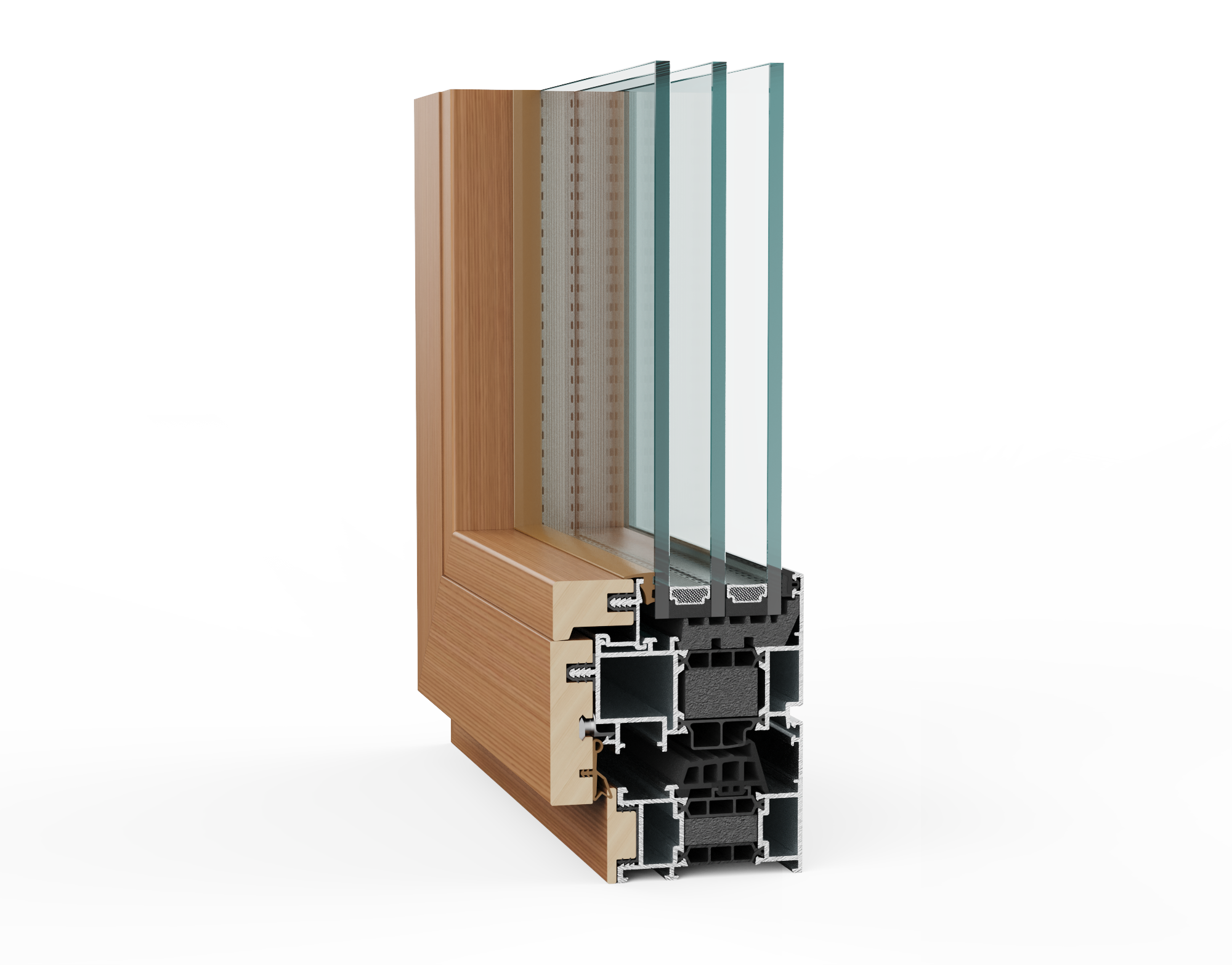

Alu-wood windows are based on ALT W72 thermally insulated window system with high level of energy efficiency, air tightness and safety performance.
Technical information
Opening elements
Fabrication benefits
Video
Color options
Documentation
More solutions
Technical information
up to 2 600 mm
Max sash height
up to 1 650 mm
Max sash width
50 mm
Max infill unit thickness
up to 150 kg
Max sash weight

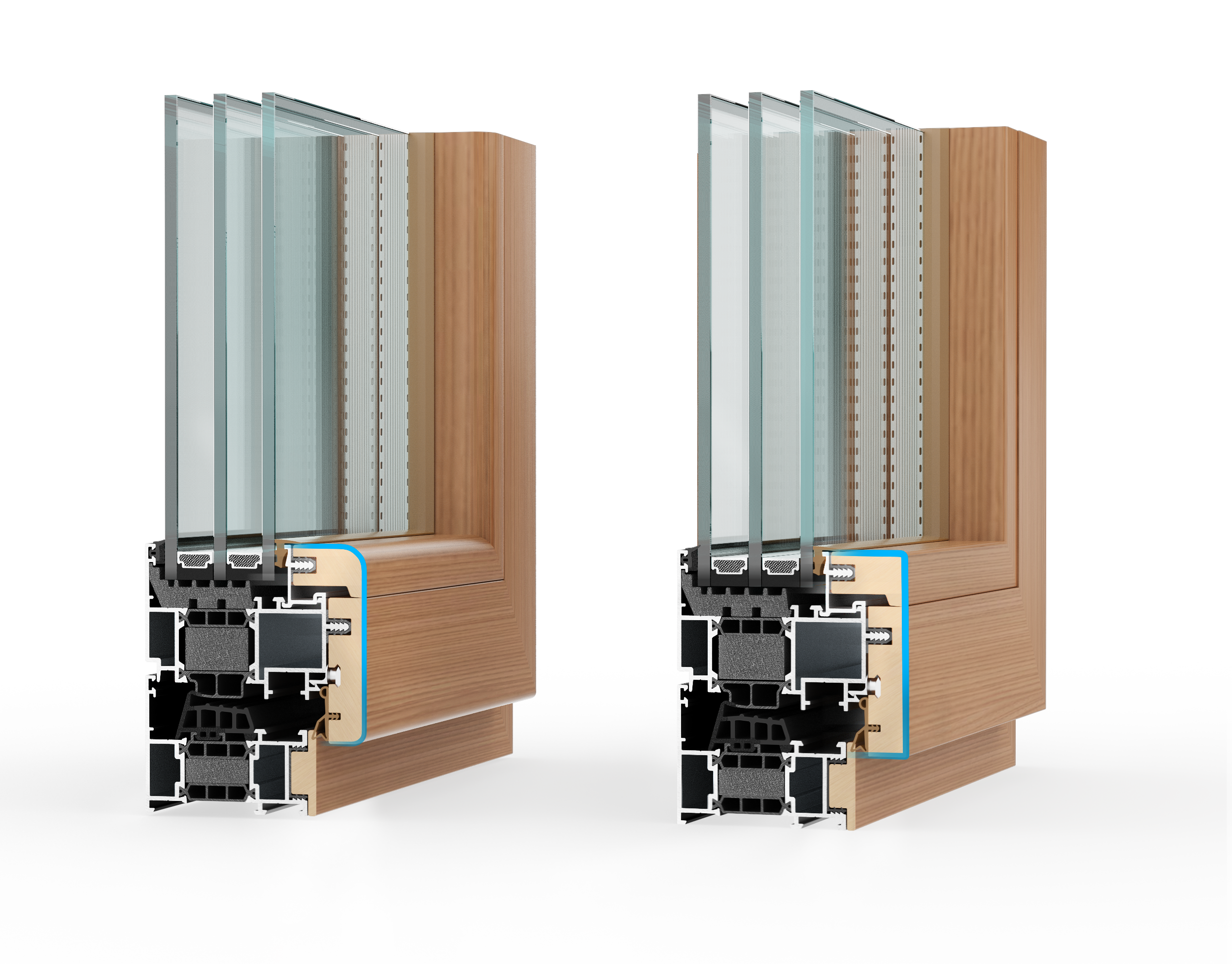

Energy
Uw >= 0.8 W/(m²K)
Thermal insulation in accordance with EN ISO 10077-2
Comfort
class E1200 (1200 Pa)
Water tightness (EN 1027:2000, EN 12208:1999)
class 4 (600 Pa)
Air permeability (EN 1026:2000, EN12207:1999)
class CE2400 (2400 Pa; 1/300)
Wind load resistance (EN 12211:2000, EN 12210:1999)
up to 41dB
Acoustic insulation (EN ISO 10140-2:2011, EN ISO 10140-4:2011)
Opening elements
Fabrication benefits
- The outer part of the window is made of aluminium; the inner part is lined with natural wood.
- A variety of decorative covers made from natural wood (Natural oak, Dark oak, Golden oak, White ash)
- Installation of timber covers is done after the window assembly.
- Prefabricated windows are shipped to the client under manufacturer warranty.
Video
Color options
1. POWDER COATING
- exclusive collections (Futura, Precis, Anodic);
- variety of surface types (glossy, matte, textured);
- innovative antimicrobial BIO-coating option.
2. ANODIZING
- 9 standard colours;
- possibility to choose different surface treatments (chemical etching, bead blasting, brushing).
3. WOOD-GRAIN EFFECT
- 5 woodgrain options.
