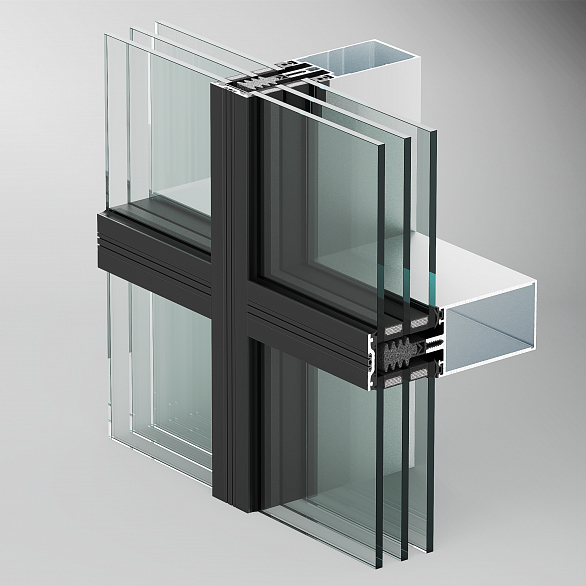

ALT F50SSG Semi-structural glazed curtain wall
ALT F50SSG system allows you to create an imitation of structural glazing. The peculiarity of this system is the absence of decorative caps. Instead, clamp profiles which are almost invisible from the outside are used.
Types of integrated units:
- ALT window and door systems;
- integrated facade windows with different opening types;
- smoke hatches.
Technical information
Opening elements
Fabrication benefits
Video
Color options
Documentation
More solutions
Technical information
50, 60, 80 mm
Internal visible profile width
40, 50 mm
External visible profile width
68 mm
Max infill unit thickness
700, 1000 kg
Max weight of the infill unit
6 201 cm4
Max moment of inertia
pressure plate
Method of infill unit fixation
all ALUTECH window and door systems, integrated facade windows and roof vents
Integated elements
Energy
Uf >= 0.6 W/m2∙K
Thermal insulation (EN ISO 10077-2:2017)
Comfort
Class R7 (600 Pa)
Water tightness (EN 13830:2003)
Class A4 (600 Pa)
Air permeability (EN 13830:2003)
2,4 (2400 Pa)
Wind loads resistance, kN/m2 (EN 13830:2003)
Class E5 (external impact), Class I5 (internal impact)
Impact resistance
up to 48 dB
Acoustic insulation (depending on the infill unit used)
Opening elements
Fabrication benefits
- Integrated series of gaskets for the entire system platform.
- Min. preparation costs, quick installation.
- Push-button fixing element — quick and technological mounting.
- Foamed caps for mullion/transom connection — high aesthetic design level.
Video
Color options
1. POWDER COATING
- exclusive collections (Futura, Precis, Anodic);
- variety of surface types (glossy, matte, textured);
- innovative antimicrobial BIO-coating option.
2. ANODIZING
- 9 standard colours;
- possibility to choose different surface treatments (chemical etching, bead blasting, brushing).
3. WOOD-GRAIN EFFECT
- 5 woodgrain options.
