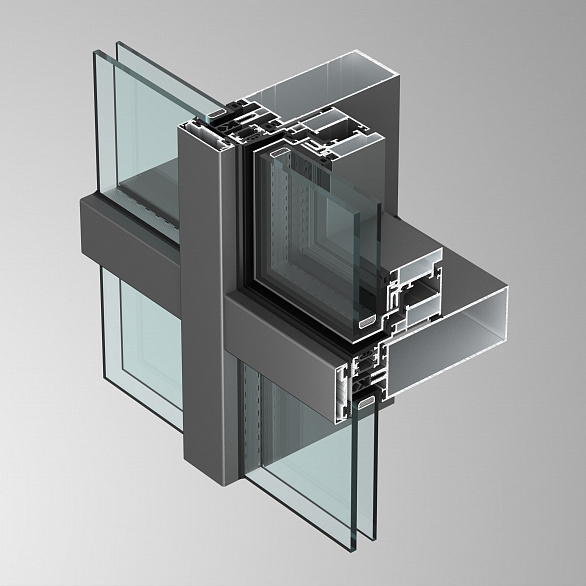

ALT F50W Facade vent with 1" (25.4 mm) glass unit
The new solution represents a curtain wall integrated window with standard 1" (25.4 mm) single-chamber glass unit. The IGU is fixed by gluing the inner glass to the sash with a structural silicone sealant that ensures a modern design and all-glass look of the window.
The new facade window is available in top-hung version (standard Stublina hardware kit) with an option of automatic drive integration (D+H drive kit).
System overview
Technical information
Opening elements
Fabrication benefits
Color options
Documentation
More solutions
Technical information
up to 2 200 mm
Max. sash height
up to 1 400 mm
Max. sash width
180 kg
Sash weight
1” (25.4 mm) and 1 1/4" (31,8 mm) *optional solution (for details please contact our sales team)
Infill unit thickness
Stublina
Hardware
D+H
Automation
Energy
Uf = 1,89 W/(m²K)
Thermal insulation EN ISO 10077-2:2017
Opening elements
Fabrication benefits
- High thermal performance and air-tightness.
- Easy and technologically advanced assembly.
- Modern design.
- Stock optimization due to the use of standard window hardware.
Color options
1. POWDER COATING
- exclusive collections (Futura, Precis, Anodic);
- variety of surface types (glossy, matte, textured);
- innovative antimicrobial BIO-coating option.
2. ANODIZING
- 9 standard colours;
- possibility to choose different surface treatments (chemical etching, bead blasting, brushing).
3. WOOD-GRAIN EFFECT
- 5 woodgrain options.
Documentation
Direct access to technical documentation, catalogs, BIM objects available
for authorized users.
