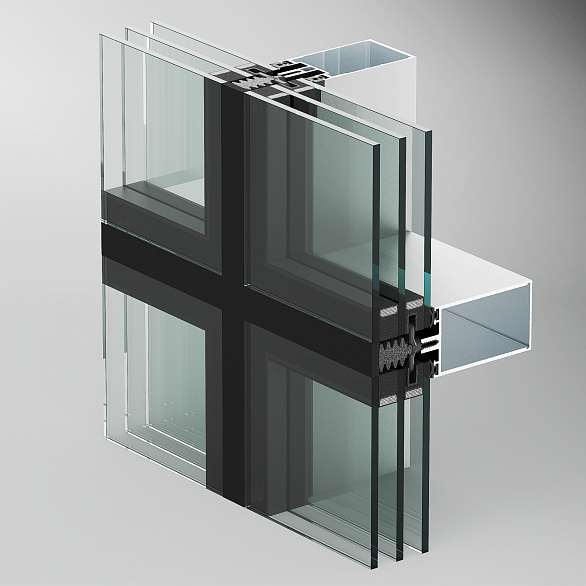

ALT F50SG Structural glazed curtain wall
ALT F50SG system allows to create all-glass façades of any configuration. Maximum transparency and visual lightness are due to the optimal configuration of profiles and possibility to implement various joint solutions.
Types of integrated units:
- ALT window and door systems;
- integrated facade windows with different opening types;
- smoke hatches.
Technical information
Opening elements
Fabrication benefits
Video
Color options
Documentation
More solutions
Technical information
50 mm
Internal visible profile width
20 mm
External visible profile width
62 mm
Max infill unit thickness
650 kg
Max weight of the infill unit
6 201 cm4
Max moment of inertia
bonding
Method of infill unit fixation
all ALUTECH window and door systems, integrated facade windows and roof vents
Integated elements
Energy
Uf >= 1,35 W/m2∙K
Thermal insulation (EN ISO 10077-2:2017)
Comfort
Class R7 (600 Pa)
Water tightness (EN 13830:2003)
Class A4 (600 Pa)
Air permeability (EN 13830:2003)
2,4 (2400 Pa)
Wind loads resistance, kN/m2 (EN 13830:2003)
Class E5 (external impact), Class I5 (internal impact)
Impact resistance
up to 48 dB
Acoustic insulation (depending on the infill unit used)
Opening elements
Fabrication benefits
- Integrated series of gaskets for the entire system platform.
- Min. preparation costs, quick installation.
- Push-button fixing element — quick and technological mounting.
- Foamed caps for mullion/transom connection — high aesthetic design level.
Video
Color options

1. POWDER COATING
- exclusive collections (Futura, Precis, Anodic);
- variety of surface types (glossy, matte, textured);
- innovative antimicrobial BIO-coating option.
2. ANODIZING
- 9 standard colours;
- possibility to choose different surface treatments (chemical etching, bead blasting, brushing).
3. WOOD-GRAIN EFFECT
- 5 woodgrain options.
