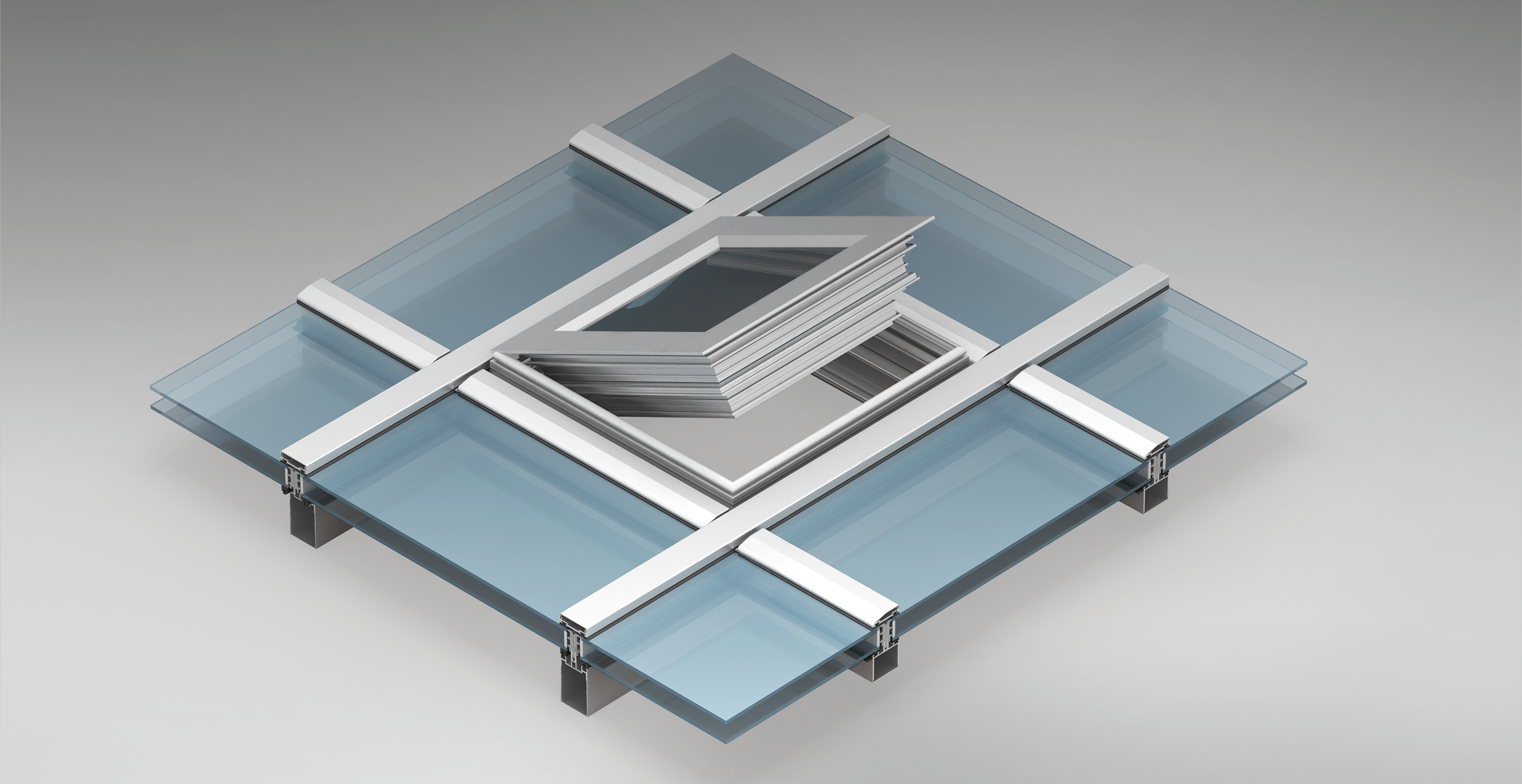

Slimline roof vent
Due to the improved technological characteristics, this option can be used for energy-efficient buildings.
The design of smoke hatches allows to install glass units up to 50 mm.
The optimum combination of various components makes it possible to significantly increase the thermal properties of the smoke hatch and to achieve thermal conductivity of «facade mullion — frame — hatch sash» joint on the level U1=1.979 W/(m2K).
Technical information
95 mm
Internal visible width
95 mm
External visible width
31 mm
Hatch height from the infill unit surface
50 mm
Max infill unit thickness
clamp profile
Method of infill unit fixation
Fabrication benefits
Fabrication benefits
- Optimization of the warehouse due to the universal accessories.
- Quick and easy assembly of systems due to well-thought-out configuration of profiles and accessories.
- Simple profiles processing.
- High-quality gaskets, hardware and automation from leading manufacturers ensure comfortable and long-term operation of the sash.
