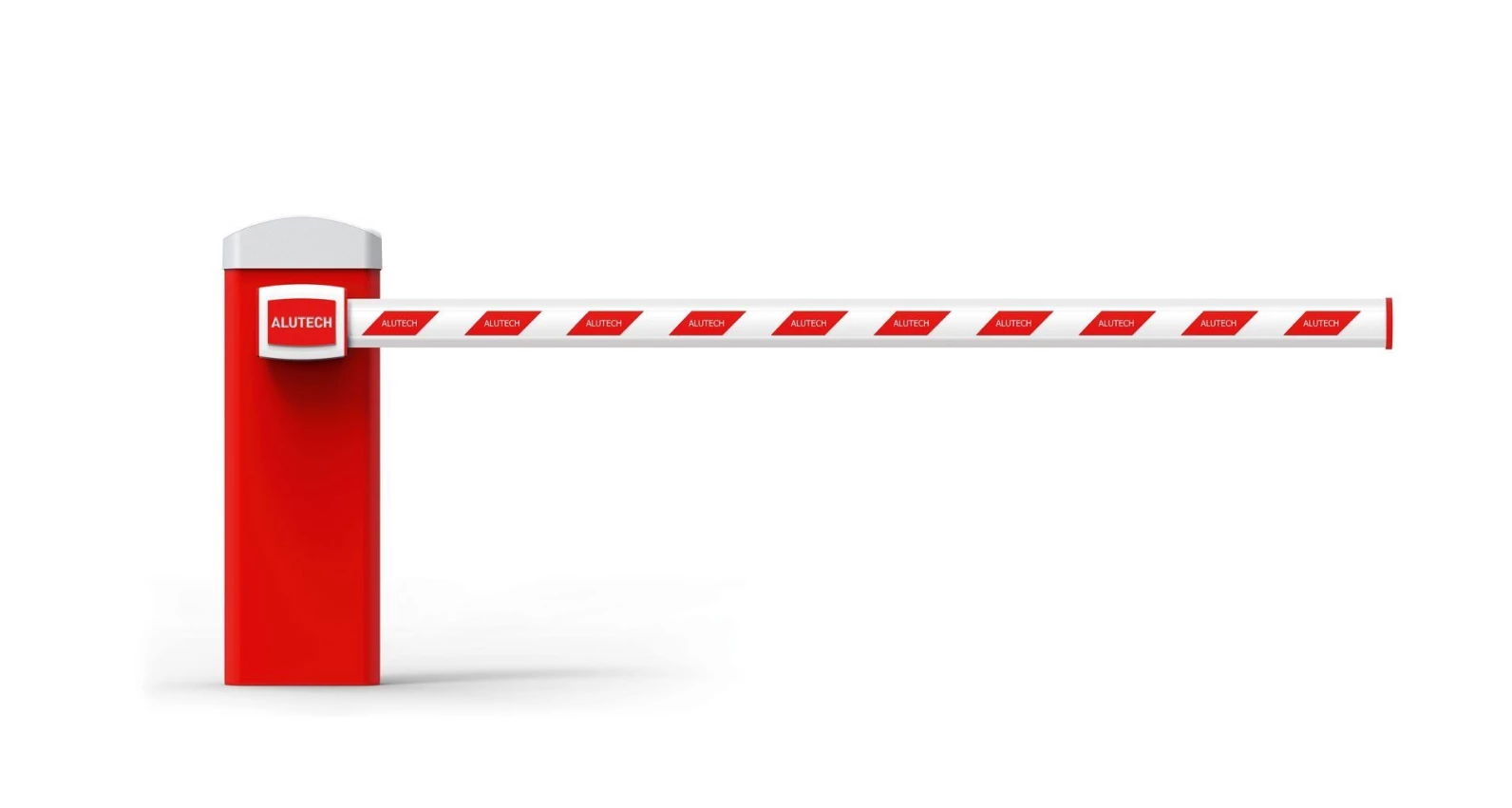

ALUTECH Bravo barrier
Intelligent traffic control solution for for high-traffic facilities. Bright and stylish barrier with reliability and durability.
We are ready to provide additional information on your questions about the products
Suitable for wide openings
Two counter barriers are capable of blocking roadways up to 12 m wide.
road width
LED lighting with traffic light mode
Integrated LED illumination with traffic light mode as standard provides additional safety in heavy traffic.
Quick access to the site
ALUTECH Bravo is the perfect solution for areas with high traffic flow. Fast boom raising - from 3 to 6 seconds - will help to avoid traffic congestion.
Get additional information
To receive answers to all your questions, please leave a request in the feedback form.
Technical specifications
160-270 В
power surge
protection
250 cycles per hour
usage
intensity
-30......+65
operating temperature range
temperature
3-6 sec
opening phase
1,000,000 cycles
capacity
6 m
boom maximum length
Boom options
Rectangular
Allows to install the illumination with traffic light mode.
Effective lengths are 4 m and 5 m, respectively.
Round
Provides better operation under the wind loads.
Effective length is 6 m.
Safe operation
ALUTECH Bravo barriers are equipped with various options that make their use comfortable and safe.

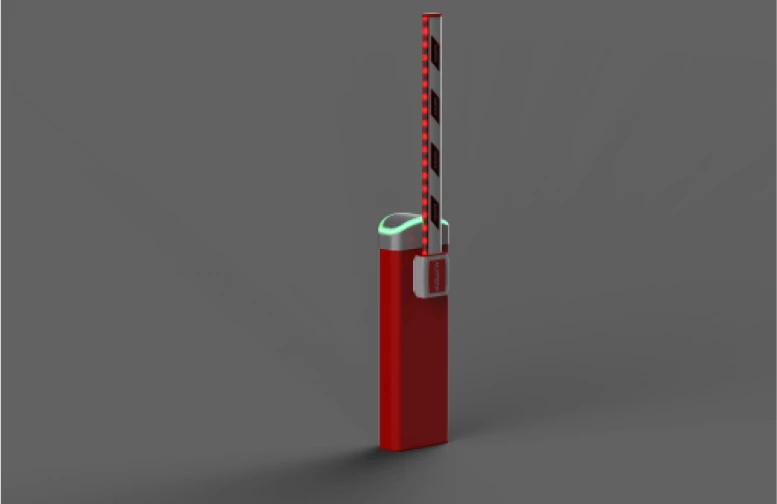

LED lighting with traffic light mode can also be installed on the boom of the barrier, thus increasing the visibility of control signals, which has a positive impact on traffic safety.
Stopping boom on contact with an obstacle
Obstacle detection function protects an object caught under the moving barrier boom from the significant damage.
Connecting barrier to the alarm system
Connecting barrier to the alarm system allows you to customize the operation of the barrier according to security requirements - when the alarm system is activated, the barrier will either close or open and will not respond to other commands.
Programming operation of optional accessories
Ability to connect and program any accessories allows you to solve the access control issues and maintain additional security at the site.
Site exit warning
Accessory is purchased separately.
I see
Signal lamp will additionally mark the exit from the territory and reduce the likelihood of an accident.
Obstacle detection
The accessory is purchased separately.
I see
Photocells protect property from serious injury and damage - the barrier will detect an obstacle in its path and will not lower the boom.
Long-term
trouble-free operation
opening/closing cycles - Bravo barriers' cycles capacity
Robust construction
Enclosure components are made of 2 to 4 mm thick steel. Protective cases are made of 2 mm thick steel. This solution increases the strength and rigidity of the structure.
3 years warranty
ALUTECH Bravo barriers are covered by the company warranty - 36 months.
...and under voltage fluctuations
The barriers demonstrate stable operation in a wide voltage range of 160 - 270 V. Ideal solution for summer cottage communities and other facilities with unstable power supply network.
Stable operation even in freezing temperatures...
Bravo barriers operate stably at low temperatures down to -30°C.
Convenient solution
Operation of the barrier can be adjusted to the specific of the site, taking into account the intensity of traffic and security requirements. Encoder allows you to fine-tune the barrier operation: speed, adjust the boom deceleration, adjust the end positions.
Functional and efficient
The barrier cabinet is designed for left- and right-side mounting, which eliminates the risk of error while ordering products.
Option to effectively adjust the operation depending on the intensity of traffic on the site. If the user forgets to close the barrier, the boom will lower automatically and prevent unauthorised access to the site.
Up to 250 remote controls can be saved in the memory of the control unit. Recorded remote controls are administered. There is an option to remove a remote using the code or identifying the number of the remote record. This is an important option for public and infrastructure facilities. By installing a universal receiver, up to 500 additional remote controls can be saved.
Installation of two counter barriers allows you to block road up to 12 m wide and control both simultaneously and separately. This makes it possible to organize counter traffic.
